standards

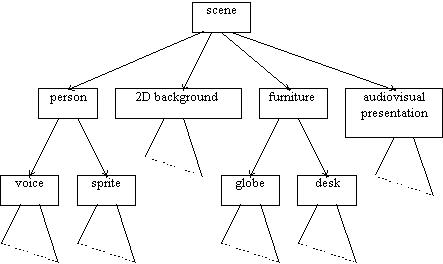

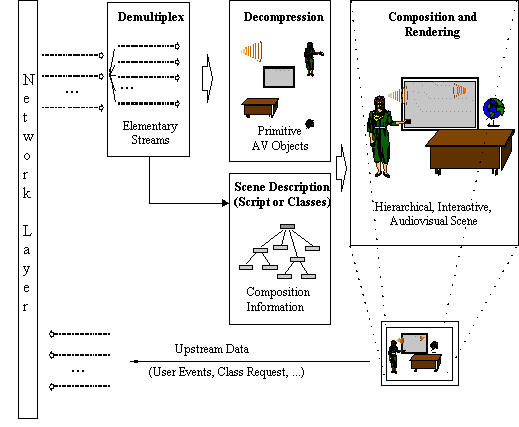

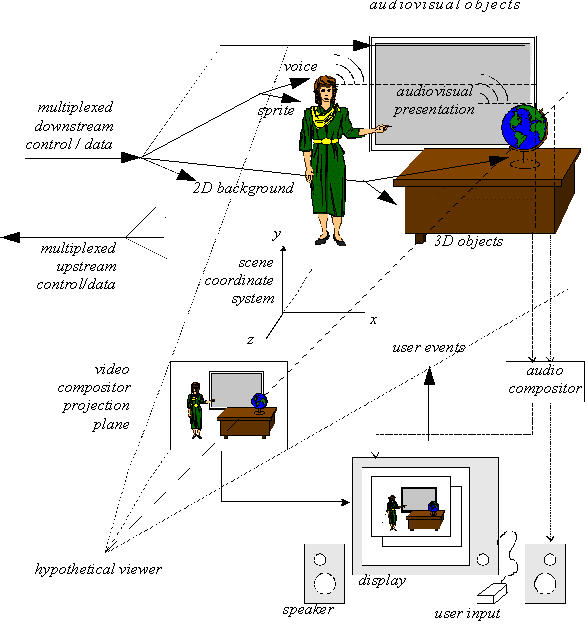

Imagine, a talking figure standing next to a desk and a projection screen, explaining the contents of a video that is being projected on the screen, pointing at a globe that stands on the desk. The user that is watching that scene decides to change from viewpoint to get a better look at the globe ...

How would you describe such a scene? How would you encode it? And how would you approach decoding and user interaction?

The solution lies in defining media objects and a suitable notion of composition of media objects.

media objects

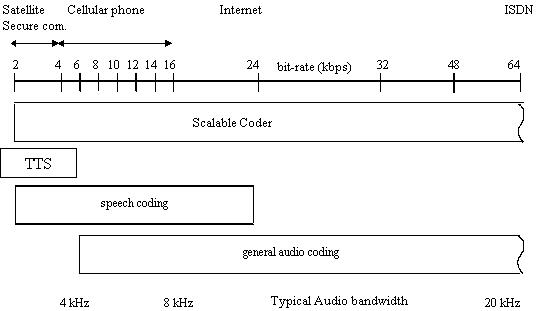

• media objects -- units of aural, visual or audiovisual content

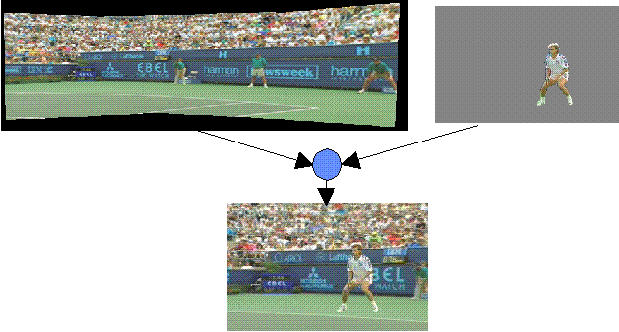

• composition -- to create compound media objects (audiovisual scene)
• transport -- multiplex and synchronize data associated with media objects
• interaction -- feedback from users' interaction with audiovisual scene

Authoring a SMIL presentation comes down, basically, to

name media components for text, images,audio and video with URLs, and to schedule their presentation either in parallel or in sequence.

Quoting the SMIL 2.0 working draft, we can characterize the SMIL presentation characteristics as follows:

presentation characteristics

• The presentation is composed from several components that are accessible via URL's, e.g. files stored on a Web server.
• The components have different media types, such as audio, video, image or text. The begin and end times of different components are specified relative to events in other media components. For example, in a slide show, a particular slide is displayed when the narrator in the audio starts talking about it.
• Familiar looking control buttons such as stop, fast-forward and rewind allow the user to interrupt the presentation and to move forwards or backwards to another point in the presentation.
• Additional functions are "random access", i.e. the presentation can be started anywhere, and "slow motion", i.e. the presentation is played slower than at its original speed.
• The user can follow hyperlinks embedded in the presentation.

applications

• Photos taken with a digital camera can be coordinated with a commentary
• Training courses can be devised integrating voice and images.
• A Web site showing the items for sale, might show photos of the product range in turn on the screen, coupled with a voice talking about each as it appears.
• Slide presentations on the Web written in HTML might be timed so that bullet points come up in sequence at specified time intervals, changing color as they become the focus of attention.
• On-screen controls might be used to stop and start music.

   <par>
      <a href="#Story"> <img src="button1.jpg"/> </a>
      <a href="#Weather"> <img src="button2.jpg"/></a>
       <excl>
           <par id="Story" begin="0s">
             <video src="video1.mpg"/>
             <text src="captions.html"/>
           </par>

           <par id="Weather">
             <img src="weather.jpg"/>
             <audio src="weather-rpt.mp3"/>
           </par>
       </excl>
   </par>


Before discussing how the functionality proposed in the SMIL 2.0working draft may be realized, we might reflect on how to position SMIL with respect to the many other approaches to provide multimedia on the web. As other approaches we may think of flash, dynamic HTML (using javascript), or java applets. In the SMIL 2.0 working draft we read the following comment:

history

Experience from both the CD-ROM community and from the Web multimedia community suggested that it would be beneficial to adopt a declarative format for expressing media synchronization on the Web as an alternative and complementary approach to scripting languages.

Following a workshop in October 1996, W3C established a first working group on synchronized multimedia in March 1997. This group focused on the design of a declarative language and the work gave rise to SMIL 1.0 becoming a W3C Recommendation in June 1998.

In summary, SMIL 2.0 proposes a declarative format to describe the temporal behavior of a multimedia presentation, associate hyperlinks with media objects, describe the form of the presentation on a screen, and specify interactivity in multimedia presentations. Now,why such a fuzz about "declarative format"? Isn't scripting more exciting? And aren't the tools more powerful? Ok, ok. I don't want to go into that right now. Let's just consider a declarative format to be more elegant. Ok?

To support the functionality proposed for SMIL 2.0 the working draft lists a number of modules that specify the interfaces for accessing the attributes of the various elements. SMIL 2.0 offers modules for animation, content control, layout, linking, media objects, meta information, timing and synchronization, and transition effects.

SMIL 2.0 Modules

• The Animation Modules
• The Content Control Modules
• The Layout Modules
• The Linking Modules
• The Media Object Modules
• The Metainformation Module
• The Structure Module
• The Timing and Synchronization Module
• The Time Manipulations Module
• The Transition Effects Module

This modular approach allows to reuse SMIL syntax and semantics in other XML-based languages, in particular those that need to represent timing and synchronization. For example:

module-based reuse

• SMIL modules could be used to provide lightweight multimedia functionality on mobile phones, and to integrate timing into profiles such as the WAP forum's WML language, or XHTML Basic.
• SMIL timing, content control, and media objects could be used to coordinate broadcast and Web content in an enhanced-TV application.
• SMIL Animation is being used to integrate animation into W3C's Scalable Vector Graphics language (SVG).

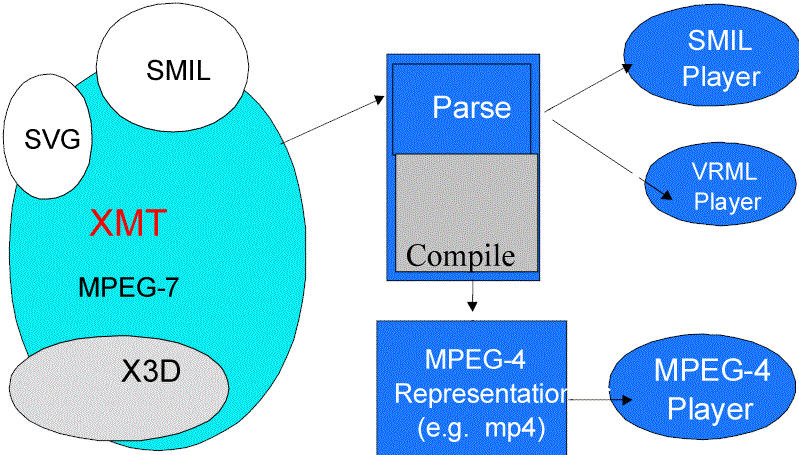

• Several SMIL modules are being considered as part of a textual representation for MPEG4.

The SMIL 2.0 working draft is at the moment of writing being finalized. It specifies a number of language profiles topromote the reuse of SMIL modules. It also improves on the accessibility features of SMIL 1.0, which allows for, for example,, replacing captions by audio descriptions.

In conclusion, SMIL 2.0 is an interesting standard, for a number of reasons. For one, SMIL 2.0 has solid theoretical underpinnings in a well-understood, partly formalized, hypermedia model (AHM). Secondly, it proposes interesting functionality, with which authors can make nice applications. In the third place, it specifies a high level declarative format, which is both expressive and flexible. And finally, it is an open standard (as opposed to proprietary standard). So everybody can join in and produce players for it!

...

---

---

8

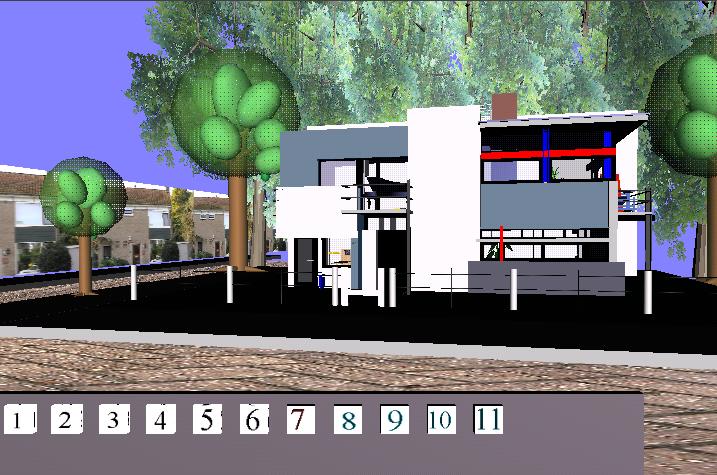

RM3D -- not a standard

The web started with simple HTML hypertext pages. After some time static images were allowed. Now, there is support for all kinds of user interaction, embedded multimedia and even synchronized hypermedia. But despite all the graphics and fancy animations, everything remains flat. Perhaps surprisingly, the need for a 3D web standard arose in the early days of the web. In 1994, the acronym VRML was coined by Tim Berners-Lee, to stand for Virtual Reality Markup Language. But, since 3D on the web is not about text but more about worlds, VRML came to stand for Virtual Reality Modeling Language. Since 1994, a lot of progress has been made.

www.web3d.org

• VRML 1.0 -- static 3D worlds
• VRML 2.0 or VRML97 -- dynamic behaviors
• VRML200x -- extensions
• X3D -- XML syntax
• RM3D -- Rich Media in 3D

In 1997, VRML2 was accepted as a standard, offering rich means to create 3D worlds with dynamic behavior and user interaction. VRML97 (which is the same as VRML2) was, however, not the success it was expected to be, due to (among others) incompatibility between browsers, incomplete implementations of the standards, and high performance requirements.

As a consequence, the Web3D Consortium (formerly the VRML Consortium) broadened its focus, and started thinking about extensions or modifications of VRML97 and an XML version of VRML (X3D). Some among the X3D working group felt the need to rethink the premisses underlying VRML and started the Rich Media Working Group:

groups.yahoo.com/group/rm3d/

The Web3D Rich Media Working Group was formed to develop a Rich Media standard format (RM3D) for use in next-generation media devices. It is a highly active group with participants from a broad range of companies including 3Dlabs, ATI, Eyematic, OpenWorlds, Out of the Blue Design, Shout Interactive, Sony, Uma, and others.

In particular:

RM3D

The Web3D Consortium initiative is fueled by a clear need for a standard high performance Rich Media format. Bringing together content creators with successful graphics hardware and software experts to define RM3D will ensure that the new standard addresses authoring and delivery of a new breed of interactive applications.

The working group is active in a number of areas including, for example, multitexturing and the integration of video and other streaming media in 3D worlds.

Among the driving forces in the RM3D group are Chris Marrin and Richter Rafey, both from Sony, that proposed Blendo, a rich media extension of VRML. Blendo has a strongly typed object model, which is much more strictly defined than the VRML object model, to support both declarative and programmatic extensions. It is interesting to note that the premisse underlying the Blendo proposal confirms (again) the primacy of the TV metaphor. That is to say, what Blendo intends to support are TV-like presentations which allow for user interaction such as the selection of items or playing a game. Target platforms for Blendo include graphic PCs, set-top boxes, and the Sony Playstation!

...

---

---

9

requirements

The focus of the RM3D working group is not syntax (as it is primarily for the X3D working group) but semantics, that is to enhance the VRML97 standard to effectively incorporate rich media. Let's look in more detail at the requirements as specified in the RM3Ddraft proposal.

requirements

• rich media -- audio, video, images, 2D & 3D graphics (with support for temporal behavior, streaming and synchronisation)
• applicability -- specific application areas, as determined by commercial needs and experience of working group members

The RM3D group aims at interoperability with other standards.

• interoperability -- VRML97, X3D, MPEG-4, XML (DOM access)

In particular, an XML syntax is being defined in parallel (including interfaces for the DOM). And, there is mutual interest and exchange of ideas between the MPEG-4 and RM3D working group.

As mentioned before, the RM3D working group has a strong focus on defining an object model (that acts as a common model for the representation of objects and their capabilities) and suitable mechanisms for extensibility (allowing for the integration of new objects defined in Java or C++, and associated scripting primitives and declarative constructs).

• object model -- common model for representation of objects and capabilities
• extensibility -- integration of new objects (defined in Java or C++), scripting capabilities and declarative content

Notice that extensibility also requires the definition of a declarative format, so that the content author need not bother with programmatic issues.

The RM3D proposal should result in effective 3D media presentations. So as additional requirements we may, following the working draft, mention: high-quality realtime rendering, for realtime interactive media experiences; platform adaptability, with query functions for programmatic behavior selection; predictable behavior, that is a well-defined order of execution; a high precision number systems, greater than single-precision IEEE floating point numbers; and minimal size, that is both download size and memory footprint.

• high-quality realtime rendering -- realtime interactive media experiences
• platform adaptability -- query function for programmatic behavior selection
• predictable behavior -- well-defined order of execution
• high precision number systems -- greater than single-precision IEEE floating point numbers
• minimal size -- download and memory footprint

Now, one may be tempted to ask how the RM3D proposals is related to the other standard proposals such as MPEG-4 and SMIL, discussed previously. Briefly put, paraphrased from one of Chris Marrin's messages on the RM3D mailing list

SMIL is closer to the author and RM3D is closer to the implementer.

MPEG-4, in this respect is even further away from the author since its chief focus is on compression and delivery across a network.

RM3D takes 3D scene description as a starting point and looks at pragmatic ways to integrate rich media. Since 3D is itself already computationally intensive, there are many issues thatarise in finding efficient implementations for the proposed solutions.

...

---

---

10

timing model

RM3D provides a declarative format formany interesting features, such as for example texturing objects with video. In comparison to VRML, RM3D is meant to provide more temporal control over time-based media objects and animations. However, there is strong disagreement among the working group members as to what time model the dynamic capabilities of RM3D should be based on. As we read in the working draft:

working draft

Since there are three vastly different proposals for this section (time model), the original <RM3D> 97 text is kept. Once the issues concerning time-dependent nodes are resolved, this section can be modified appropriately.

Now, what are the options? Each of the standards discussed to far provides us with a particular solution to timing. Summarizing, we have a time model based on a spring metaphor in MPEG-4, the notion of cascading time in SMIL (inspired by cascading stylesheets for HTML) and timing based on the routing of events in RM3D/VRML.

time model

• MPEG-4 -- spring metaphor
• SMIL -- cascading time
• RM3D/VRML -- event routing

The MPEG-4 standard introduces the spring metaphor for dealing with temporal layout.

MPEG-4 -- spring metaphor

• duration -- minimal, maximal, optimal

The spring metaphor amounts to the ability to shrink or stretch a media object within given bounds (minimum, maximum) to cope with, for example, network delays.

The SMIL standard is based on a model that allows for propagating durations and time manipulations in a hierarchy of media elements. Therefore it may be referred to as a cascading modelof time.

SMIL -- cascading time

• time container -- speed, accelerate, decelerate, reverse, synchronize

Media objects, in SMIL, are stored in some sort of container of which the timing properties can be manipulated.

  <seq speed="2.0">
     <video src="movie1.mpg" dur="10s"/>
     <video src="movie2.mpg" dur="10s"/>
     <img src="img1.jpg" begin="2s" dur="10s">
                 <animateMotion from="-100,0" to="0,0" dur="10s"/>
     </img>
     <video src="movie4.mpg" dur="10s"/>
  </seq>


In the example above,we see that the speed is set to 2.0, which will affect the pacing of each of the individual media elements belonging to that (sequential) group. The duration of each of the elements is specified in relation to the parent container. In addition, SMIL offers the possibility to synchronize media objects to control, for example, the end time of parallel media objects.

VRML97's capabilities for timing rely primarily on the existence of a TimeSensor thatsends out time events that may be routed to other objects.

RM3D/VRML -- event routing

• TimeSensor -- isActive, start, end, cycleTime, fraction, loop

When a TimeSensor starts to emit time events, it also sends out an event notifying other objects that it has become active. Dependent on itsso-called cycleTime, it sends out the fraction it covered since it started. This fraction may be send to one of the standard interpolators or a script so that some value can be set, such as for example the orientation, dependent on the fraction of the time intercal that has passed. When the TimeSensor is made to loop, this is done repeatedly. Although time in VRML is absolute, the frequency with which fraction events are emitted depends on the implementation and processor speed.

Lacking consensus about a better model, this model has provisionally been adopted, with some modifications, for RM3D. Nevertheless, the SMIL cascading time model has raised an interest in the RM3D working group, to the extent that Chris Marrin remarked (in the mailing list) "we could go to school here". One possibility for RM3D would be to introduce time containers that allow for a temporal transform of their children nodes, in a similar way as grouping containers allow for spatial transforms of their children nodes. However, that would amount to a dual hierarchy, one to control (spatial) rendering and one to control temporal characteristics. Merging the two hierarchies, as is (implicitly) the case in SMIL, might not be such a good idea, since the rendering and timing semantics of the objects involved might be radically different. An interesting problem, indeed, but there seems to be no easy solution.

...

---

---

11

example(s) -- rich internet applications

In a seminar held by Lost Boys, which is a dutch subdivison if Icon Media Lab, rich internet applications (RIA), were presented as the new solutions to present applications on the web. As indicated by Macromedia, who is one of the leading companies in this fiwld, experience matters, and so plain html pages pages do not suffice since they require the user to move from one page to another in a quite unintuitive fashion. Macromedia presents its new line of flash-based products to create such rich internet applications. An alternative solution, based on general W3C recommendations, is proposed by BackBase. Interestingly enough, using either technology, many of the paricipants of the seminar indicated a strong preference for a backbuuton, having similar functionality as the often used backbutton in general internet browsers.

research directions -- meta standards

All these standards! Wouldn't it be nice to have one single standard that encompasses them all? No, it would not! Simply, because such a standard is inconceivable, unless you take some proprietary standard or a particular platform as the defacto standard (which is the way some people look at the Microsoft win32 platform, ignoring the differences between 95/98/NT/2000/XP/...). In fact, there is a standard that acts as a glue between the various standards for multimedia, namely XML. XML allows for the interchange of data between various multimedia applications, that is the transformation of one encoding into another one. But this is only syntax. What about the semantics?

Both with regard to delivery and presentation the MPEG-4 proposal makes an attempt to delineate chunks of core fuctionality that may be shared between applications. With regard to presentation, SMIL may serve as an example. SMIL applications themselves already (re)use functionality from the basic set of XML-related technologies, for example to access the document structure through the DOM (Document Object Model). In addition, SMIL defines components that it may potentially share with other applications. For example, SMIL shares its animation facilities with SVG (the Scalable Vector Graphics format recommended by the Web Consortium).

The issue in sharing is, obviously, how to relate constructs in the syntax to their operational support. When it is possible to define a common base of operational support for a variety of multimedia applications we would approach our desired meta standard, it seems. A partial solution to this problem has been proposed in the now almost forgotten HyTime standard for time-based hypermedia. HyTime introduces the notion of architectural forms as a means to express the operational support needed for the interpretation of particular encodings, such as for example synchronization or navigation over bi-directional links. Apart from a base module, HyTime compliant architectures may include a units measurement module, a module for dealing with location addresses, a module to support hyperlinks, a scheduling module and a rendition module.

To conclude, wouldn't it be wonderful if, for example, animation support could be shared between rich media X3D and SMIL? Yes, it would! But as you may remember from the discussion on the timing models used by the various standards, there is still to much divergence to make this a realoistic option.

---
