+3.9 Color

Color {
  exposedField MFColor color  []         # [0,1]
}

This node defines a set of RGB colours to be used in the fields of another node.

Color nodes are only used to specify multiple colours for a single geometric shape, such as a colours for the faces or vertices of an IndexedFaceSet. A Material node is used to specify the overall material parameters of lit geometry. If both a Material and a Color node are specified for a geometric shape, the colours shall replace the diffuse component of the material.

TIP: Using the Color node to specify colors per vertex of IndexedFaceSet nodes is a very efficient and effective alternative to texture mapping. If designed properly, color per vertex can produce rich lighting and color effects. Typically, color-per-vertex rendering is much faster than texture mapping and is thus worth the effort. Note, however, that some browsers do not support color-per-vertex rendering; verify that it is supported before using this feature.


Textures take precedence over colours; specifying both a Texture and a Color node for geometric shape will result in the Color node being ignored. Details on lighting equations are described in "2.14 Lighting model."

TIP: Color nodes are specified in the color field of ElevationGrid, IndexedFaceSet, IndexedLineSet, or PointSet nodes. A Color node can function as a general color map for IndexedFaceSet and IndexedLineSet nodes. You simply DEF the Color node and USE it repeatedly, using the indexing feature of IndexedFaceSet or IndexedLineSet to refer to colors by index rather than by absolute RGB value. If you are translating from an application that only supports a limited (e.g., 256-color) color palette, then this technique can make the resulting VRML files much smaller than respecifying the RGB colors over and over.

EXAMPLE (click to run): The following example illustrates the use of the Color node in conjunction with the IndexedFaceSet node (see Figure 3-9). The first IndexedFaceSet uses a Color node that specifies two colors: black (0,0,0) and white (1,1,1). Each vertex of each face of the IndexedFaceSet is assigned one of these two colors by the colorIndex field of the IndexedFaceSet. The second IndexedFaceSet/Color is almost identical, but does not specify a colorIndex field in the IndexedFaceSet and thus relies on the coordIndex field to assign colors (see IndexedFaceSet). The third IndexedFaceSet/Color applies color to each face of the IndexedFaceSet by setting colorPerVertex FALSE and specifying colorIndex for each face.

#VRML V2.0 utf8
Group { children [
  Transform {
    translation -3 0 0
    children Shape {
      appearance DEF A1 Appearance { material Material {} }
      geometry IndexedFaceSet {
        coord DEF C1 Coordinate {
          point [ 1 0 1, 1 0 -1, -1 0 -1, -1 0 1, 0 3 0 ]
        }
        coordIndex [ 0 1 4 -1 1 2 4 -1 2 3 4 -1 3 0 4 ]
        color Color { color [ 0 0 0, 1 1 1 ] }
        colorIndex [ 0 0 1 -1 0 0 1 -1 0 0 1 -1 0 0 1 ]
      }
    }
  }
  Transform {
    children Shape {
      appearance USE A1
      geometry IndexedFaceSet {
        # uses coordIndex for colorIndex
        coord USE C1
        coordIndex [ 0 1 4 -1 1 2 4 -1 2 3 4 -1 3 0 4 ]
        color Color { color [ 1 1 1, 1 1 1, 1 1 1, 1 1 1, 0 0 0 ]}
      }
    }
  }
  Transform {
    translation 3 0 0
    children Shape {
      appearance USE A1
      geometry IndexedFaceSet {
        coord USE C1
        coordIndex [ 0 1 4 -1 1 2 4 -1 2 3 4 -1 3 0 4 ]
        color Color { color [ 0 0 0, 1 1 1 ] }
        colorIndex [ 0, 1, 0, 1 ] # alt every other face
        colorPerVertex FALSE
      }
    }
  }
  Background { skyColor 1 1 1 }
]}

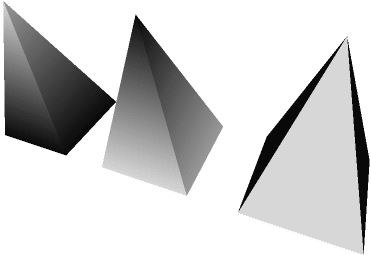

Color node example

Figure 3-9 Color Node Example
