Chapter 3: Node Reference--The Annotated VRML97 Reference Manual

Cone { field SFFloat bottomRadius 1 # (0,

) field SFFloat height 2 # (0,

) field SFBool side TRUE field SFBool bottom TRUE }

The Cone node specifies a cone which is centred in the local coordinate system and whose central axis is aligned with the local Y-axis. The bottomRadius field specifies the radius of the cone's base, and the height field specifies the height of the cone from the centre of the base to the apex. By default, the cone has a radius of 1.0 at the bottom and a height of 2.0, with its apex at y = height/2 and its bottom at y = -height/2. Both bottomRadius and height must be greater than 0.0. Figure 3-10 illustrates the Cone node.

Cone node figure

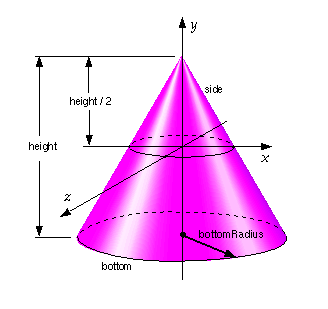

Figure 3-10: Cone node

The side field specifies whether sides of the cone are created and the bottom field specifies whether the bottom cap of the cone is created. A value of TRUE specifies that this part of the cone exists, while a value of FALSE specifies that this part does not exist (not rendered or eligible for collision or sensor intersection tests).

When a texture is applied to the sides of the cone, the texture wraps counterclockwise (from above) starting at the back of the cone. The texture has a vertical seam at the back in the X=0 plane, from the apex (0, height/2, 0) to the point (0, -height/2, -bottomRadius). For the bottom cap, a circle is cut out of the texture square centred at (0, -height/2, 0) with dimensions (2 × bottomRadius) by (2 × bottomRadius). The bottom cap texture appears right side up when the top of the cone is rotated towards the -Z-axis. TextureTransform affects the texture coordinates of the Cone.

The Cone geometry requires outside faces only. When viewed from the inside the results are undefined.

TIP: Cone nodes are specified in the geometry field of a Shape node; they may not be children of a Transform or Group node.

TECHNICAL NOTE: The VRML 1.0 version of the Cone was almost exactly the same. The only difference is the specification of the cone parts. VRML 1.0 has a special SFBitmask field for specifying a set of bits. One of the simplifications done in VRML 2.0 was removing that field type, since the same results can be achieved using multiple SFBool fields. So, the VRML 1.0 Cone's parts SFEnum field becomes the side and bottom SFBool fields.

Like the rest of the geometry primitives (Box, Sphere, and Cylinder), none of the fields of Cone are exposed, allowing very lightweight, efficient implementations. If you need to change the size of a cone, you must modify a parent Transform node's scale field. If you want to turn the parts of a Cone on and off, you must either simulate that by using a Switch node containing several Cone Shapes, or you must remove the Cone from its Shape (effectively deleting it) and replace it with a newly created Cone.

EXAMPLE (click to run): The following example illustrates the use of the Cone node (see Figure 3-11). The first cone sits on top of the second cone. Note the default texture map orientation as seen in the second Cone:

#VRML V2.0 utf8
Transform { children [
  Transform {
    translation 0 2.0 0      # sit on top of other Cone
    children Transform {
      translation 0 -1 0
      children Shape {
        geometry Cone { bottomRadius 2 height 1 }
        appearance Appearance {
          material Material { diffuseColor 1 1 1 }
        }
      }
    }
  }
  Transform {
    translation 0 1 0         # sit on y=0
    children Transform {
      translation 0 -1 0
      children Shape {
        geometry Cone {
          bottomRadius 2 height 4 bottom FALSE
        }
        appearance Appearance {
          material Material { diffuseColor 1.0 1.0 1.0 }
          texture ImageTexture { url "marble2.gif" }
        }
      }
    }
  }
  DirectionalLight { direction -.5 -0.5 .6 }
  Background { skyColor 1 1 1 }
  NavigationInfo { type "EXAMINE" }
]}

3.11 Cone

Figure 3-10: Cone node

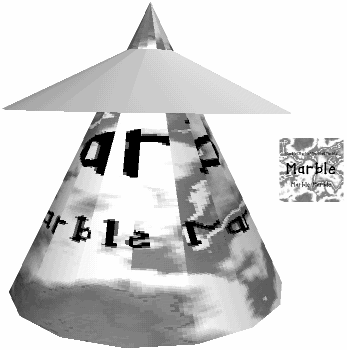

Figure 3-11: Example Cone Nodes with Texture Image
